B32916A5225K000
lmages are for reference only.B32916A5225K000
CAP FILM 2.2UF 10% 530VAC RADIAL
DatasheetRadial
51,035 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µF Film Capacitor 530V Polypropylene (PP), Metallized Radial
B32916A5225K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3291*A/B5 - X1 530V |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 530V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 0.787" W (42.00mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

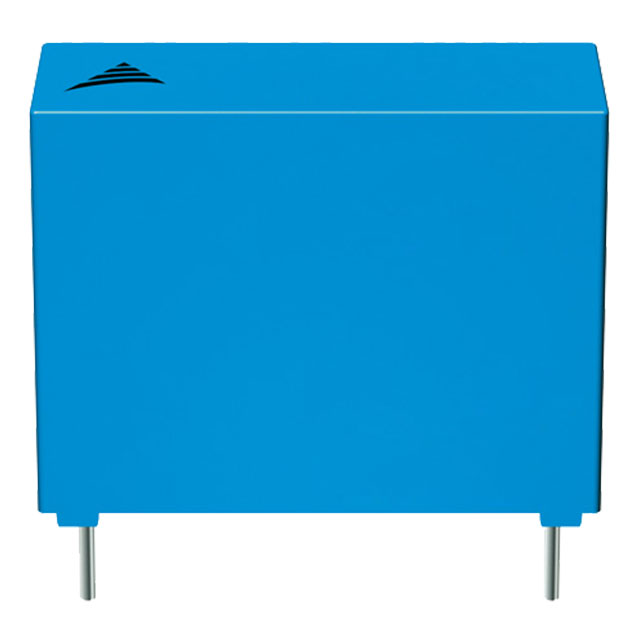

| Part Number | B32916A5224M | B32916A5225M000 | B32911A3103K000 | B32911A3103K189 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.22UF 20% 1KVDC RADIAL | CAP FILM 2.2UF 20% 1KVDC RADIAL | CAP FILM 10000PF 10% 760VDC RAD | CAP FILM 10000PF 10% 760VDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
