IGBT 1200 V 40 A 150 W Surface Mount TO-263AA
IXGA20N120B
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A |
| Power - Max | 150 W |
| Switching Energy | 6.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 63 nC |
| Td (on/off) @ 25°C | 28ns/400ns |
| Test Condition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IXGA20 |
| Product Attribute |  |
 |
 |
 |

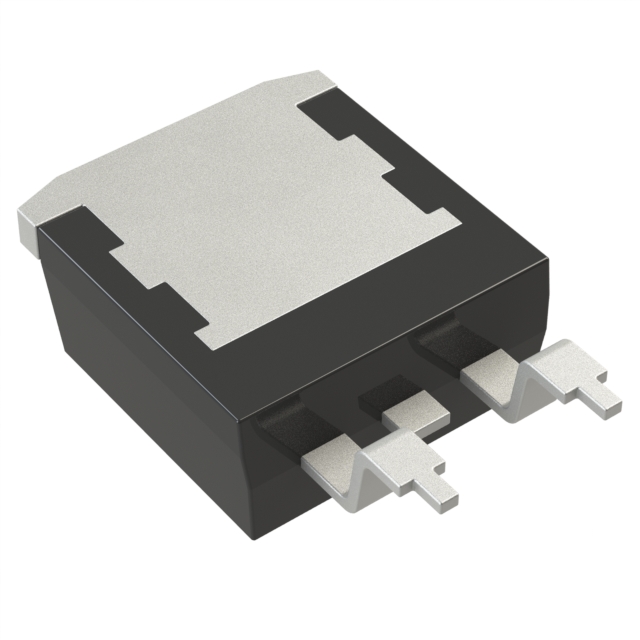

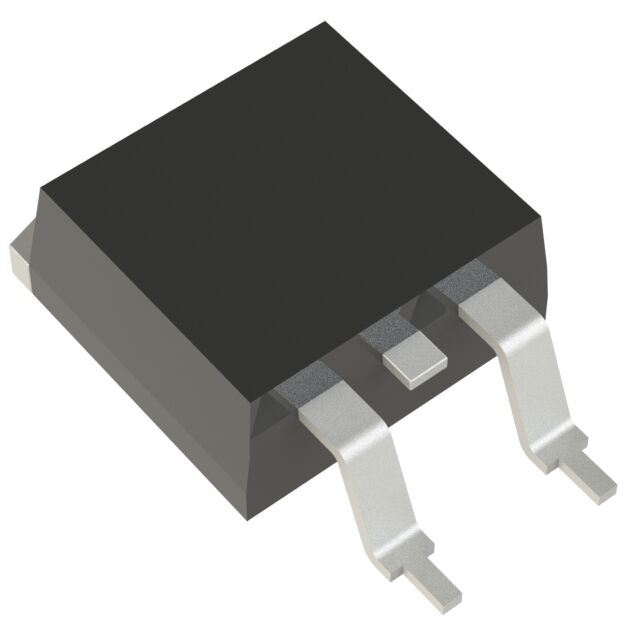

| Part Number | IXGA20N120 | IXGA20N120A3 | IXGA20N120A3-TRL | IXGA20N120B3 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1200V 40A 150W TO263 | IGBT PT 1200V 40A TO263AA | IXGA20N120A3 TRL | IGBT 1200V 36A 180W TO263 |
| Series | - | GenX3™ | GenX3™ | GenX3™ |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
