SR-5H-1A-APH

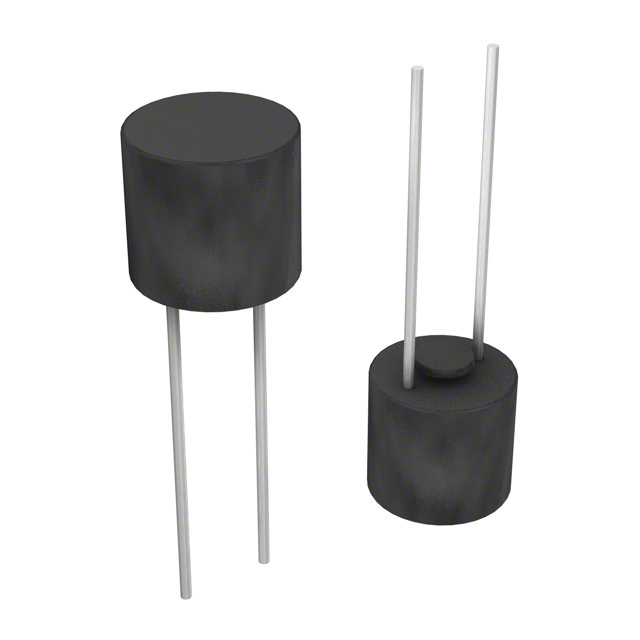

lmages are for reference only.SR-5H-1A-APH
FUSE BOARD MNT 1A 300VAC RADIAL
DatasheetRadial, Can, Vertical
12,732 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 A 300 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
SR-5H-1A-APH
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | SR-5H |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 1 A |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | - |
| Response Time | Slow Blow |
| Package / Case | Radial, Can, Vertical |
| Breaking Capacity @ Rated Voltage | 100A |
| Melting I²t | 7.5 |
| Approval Agency | CCC, cURus, KC, PSE, SEMKO, VDE |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.335" Dia x 0.362" H (8.50mm x 9.20mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.081 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | SR-5H-1.6A-APH | SR-5H-2.5A-AP | SR-5H-2.5A-APH | SR-5H-2A-AP |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | RoHS Compliant |
| Description | FUSE BOARD MNT 1.6A 300VAC RAD | FUSE BOARD MNT 2.5A 300VAC RAD | FUSE BOARD MNT 2.5A 300VAC RAD | FUSE BOARD MNT 2A 300VAC RADIAL |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Box (TB) | Cut Tape (CT) |
