1206L500SL-VYR
lmages are for reference only.1206L500SL-VYR
PTC RESET FUSE 6V 5A 1206
Datasheet1206 (3216 Metric), Concave
105,968 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 5 A Ih Surface Mount 1206 (3216 Metric), Concave
1206L500SL-VYR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, LoRho |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 5 A |
| Current - Trip (It) | 10 A |
| Current - Max | 50 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 1 mOhms |
| Resistance - Post Trip (R1) (Max) | 12 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

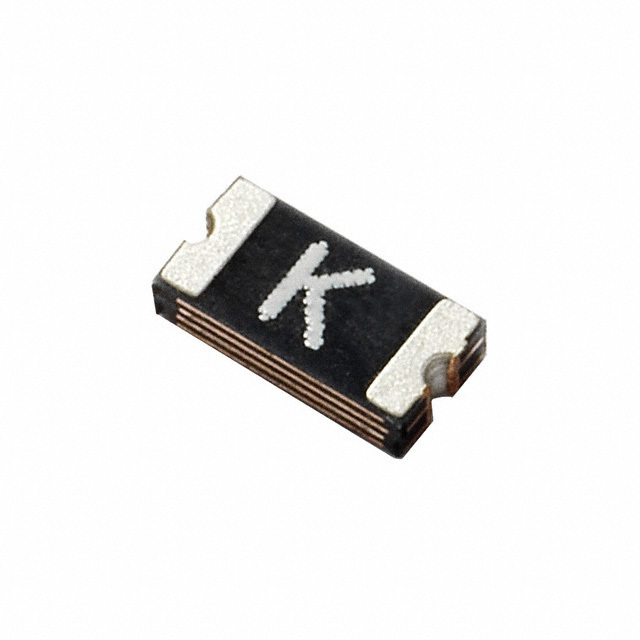

| Part Number | 1206L500/12SLPR | 1206L500SL-VWR | 1206L500SLWR | 1206L300SLTHYR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

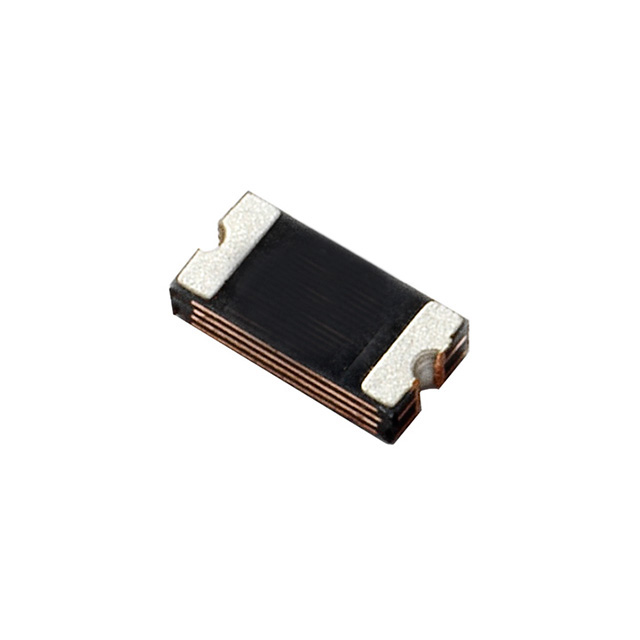

| Description | PTC RESET FUSE 5.0A 12V 1206 | PTC RESET FUSE 5.0A 6V 1206 | PTC RESET FUSE 6V 5A 1206 | PTC RESET FUSE 6V 3A 1206 |
| Series | POLY-FUSE®, LoRho | POLY-FUSE®, LoRho | POLY-FUSE®, LoRho | POLY-FUSE®, LoRho |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
