AWSCR-7.37CRLA-C15-T3
lmages are for reference only.AWSCR-7.37CRLA-C15-T3
CERAMIC RES 7.3700MHZ 15PF SMD
Datasheet3-SMD, Non-Standard
33,046 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.37 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.3% 40 Ohms -40°C ~ 85°C Surface Mount
AWSCR-7.37CRLA-C15-T3
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Abracon LLC |
| Series | AWSCR-CRLA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 7.37 MHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 15 pF |
| Impedance | 40 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) |
| Height | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

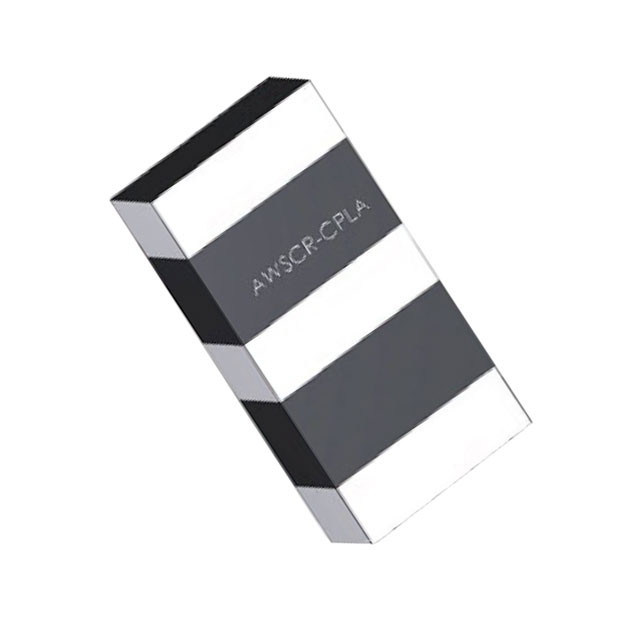

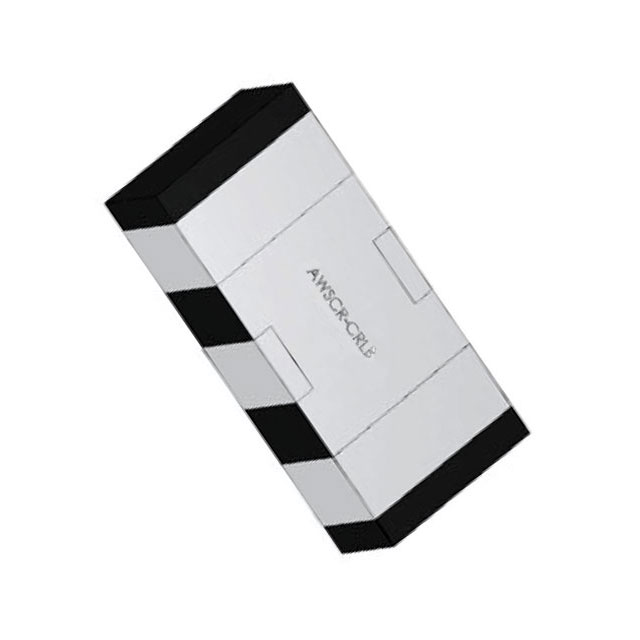

| Part Number | AWSCR-7.37CPLA-C30-T4 | AWSCR-7.37CPLB-C30-T4 | AWSCR-7.37CRLB-C15-T3 | AWSCR-10.00CELA-C10-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 7.3700MHZ 30PF SMD | CERAMIC RES 7.3700MHZ 30PF SMD | CERAMIC RES 7.3700MHZ 15PF SMD | CERAMIC RES 10.0000MHZ 10PF SMD |
| Series | AWSCR-CPLA | AWSCR-CPLB | AWSCR-CRLB | AWSCR-CELA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
