DEA203750BT-2292A1-H
lmages are for reference only.DEA203750BT-2292A1-H
RF FILTER BAND PASS 3.75GHZ 0805
Datasheet0805 (2012 Metric), 6 PC Pad
51,670 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.75GHz Frequency Band Pass RF Filter (Radio Frequency) 900MHz Bandwidth 2.3dB 0805 (2012 Metric), 6 PC Pad
DEA203750BT-2292A1-H
| Category | Filters - RF Filters - |
| Manufacturer | TDK Corporation |
| Series | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 3.75GHz |
| Bandwidth | 900MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 2.3dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

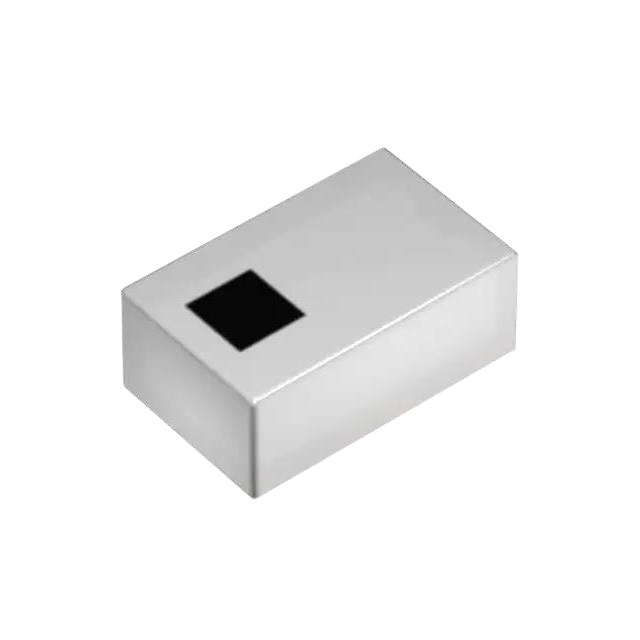

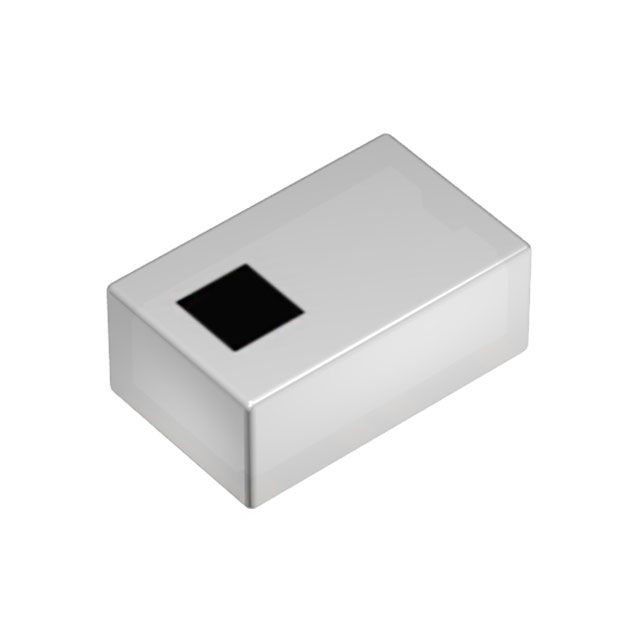

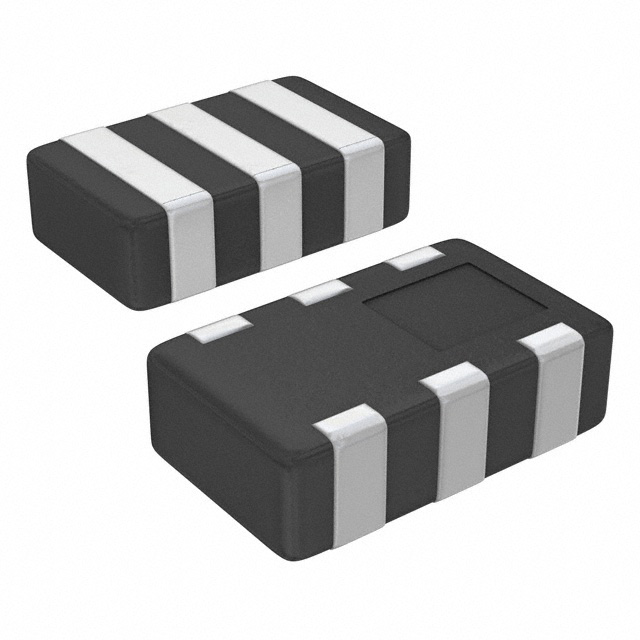

| Part Number | DEA200710LT-1238A1 | DEA200960LT-5055B1 | DEA202025LT-5052C1 | DEA202170LT-5071A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 590MHZ 0805 | RF FILTER LOW PASS 829MHZ 0805 | RF FILTER LOW PASS MULT LAY 0805 | RF FILTER LOW PASS MULT LAY 0805 |
| Series | DEA | DEA | DEA | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
