LSY T670-JL-1-0+JL-1-0-10-R18-Z
lmages are for reference only.LSY T670-JL-1-0+JL-1-0-10-R18-Z
LED RED/YELLOW CLEAR 4PLCC SMD
Datasheet4-PLCC
68,821 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Yellow 628nm Red, 590nm Yellow LED Indication - Discrete 2V Red, 2V Yellow 4-PLCC
LSY T670-JL-1-0+JL-1-0-10-R18-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Multi TOPLED® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 11.25mcd Red, 11.25mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2V Yellow |
| Current - Test | 10mA Red, 10mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 628nm Red, 590nm Yellow |
| Wavelength - Peak | 635nm Red, 586nm Yellow |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

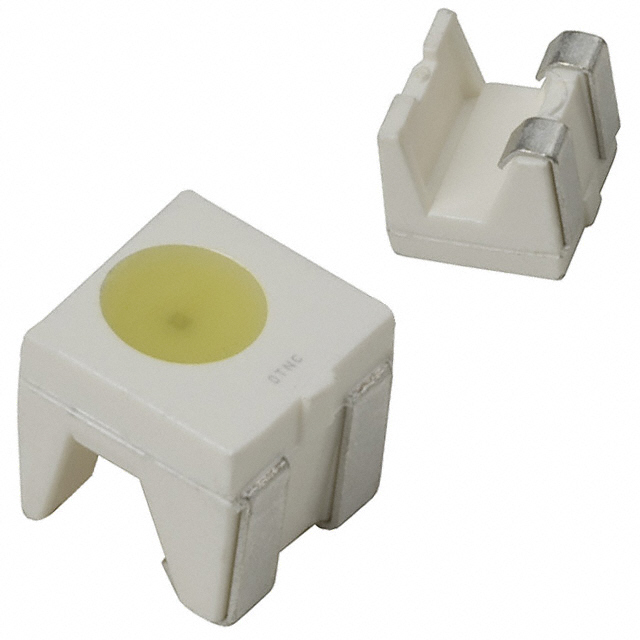

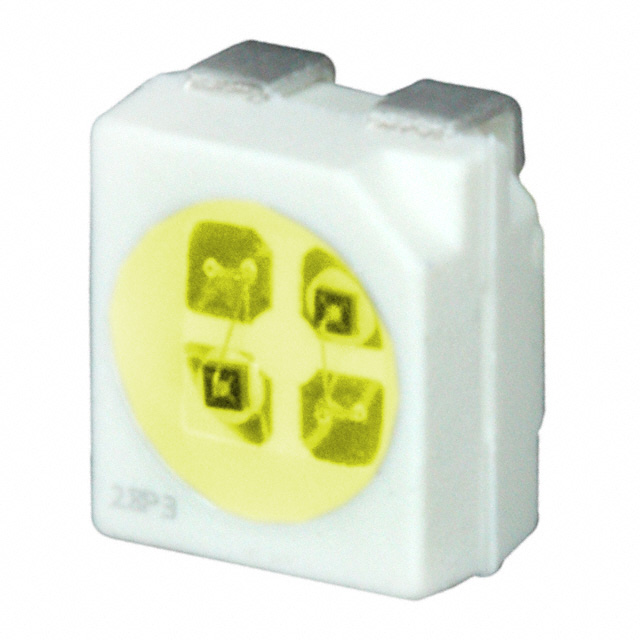

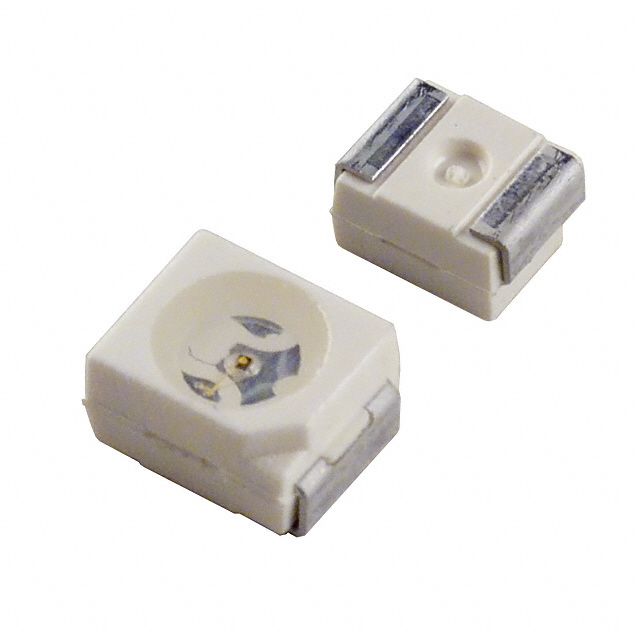

| Part Number | LSY A676-P2R1-1-0+Q2S1-1-0-20-R33-Z | LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z | LSY T676-P1Q2-1-0+R1S2-35-0-20-R18-Z-SV | LSY T676-P2R1-1-0+Q2S1-35-0-20-R18-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED RED/YELLOW CLEAR SMD R/A | LED TOPLED 633/587 RED/YLW 4PLCC | LED SMD | LED RED/YELLOW CLEAR 4PLCC SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
