Product CatalogPart Number
PA2050.103NL
Manufacturer
Pulse ElectronicsDescription
FIXED IND 10.2UH 12.5A 5.8 MOHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
13,367 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PA2050.103NL
PA2050.103NL
lmages are for reference only.Payment Methods
Delivery Services
10.2 µH Shielded Wirewound Inductor 12.5 A 5.8mOhm Nonstandard
Quick Inquiry
PA2050.103NL
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | PA2050NL |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 12.5 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | PA2050.193NL | PA2050.233NL | PA2050.273NL | PA2050.313NL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 19.4UH 8.5A 12.6 MOHM | FIXED IND 23UH 8A 13.7 MOHM SMD | FIXED IND 27UH 7.8A 14.9MOHM SMD | FIXED IND 31.4UH 6.7A 20.2 MOHM |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
PA2050.193NL
Pulse Electronics
PA2050.233NL
Pulse Electronics
PA2050.273NL
Pulse Electronics
PA2050.313NL
Pulse Electronics
PA2050.363NL
Pulse Electronics
PA2050.393NL
Pulse Electronics
PA2050.413NL
Pulse Electronics
PA2050.582NL
Pulse Electronics

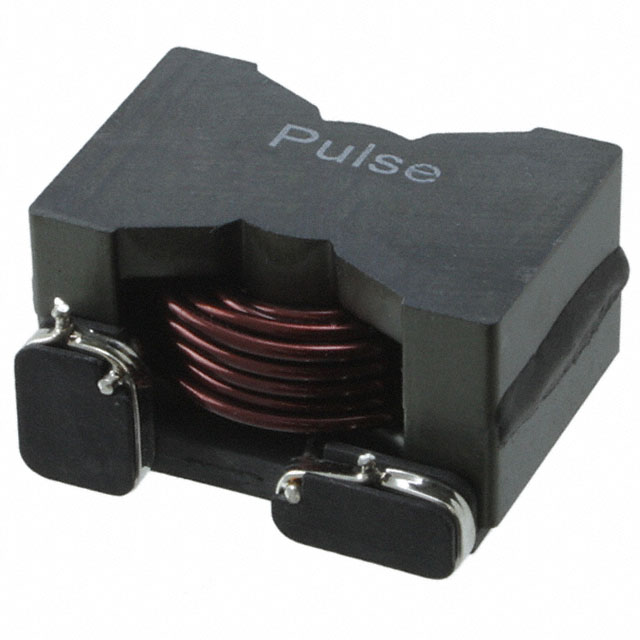

PA2050.583NL
Pulse Electronics

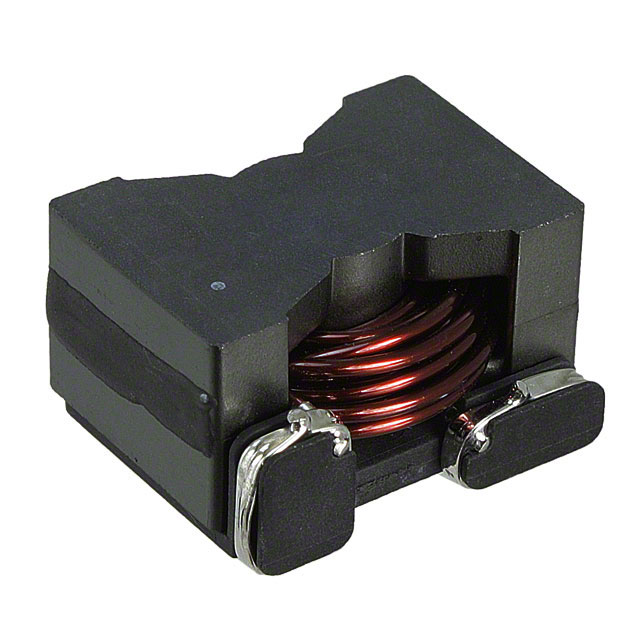

PA2050.782NL
