SMCJE12A
lmages are for reference only.SMCJE12A
TVS DIODE 12VWM 19.9VC SMC
DatasheetDO-214AB, SMC
36,548 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
19.9V Clamp 75.4A Ipp Tvs Diode Surface Mount SMC
SMCJE12A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMCJE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Current - Peak Pulse (10/1000µs) | 75.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

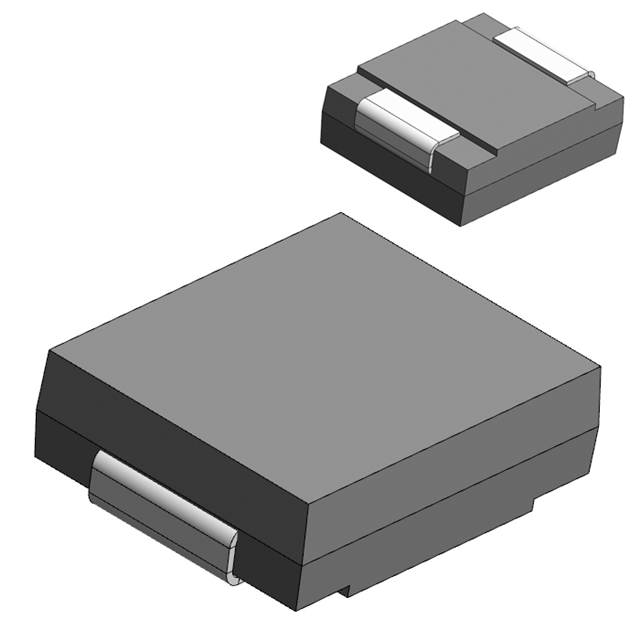

| Part Number | SMCJE120A | SMCJE120AH | SMCJE120CA | SMCJE120CAH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | TVS DIODE 120VWM 193VC SMC | TVS DIODE 120VWM UNI | TVS DIODE 120VWM 193VC SMC | TVS DIODE 120VWM BI |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
