VLCF4018T-100MR74-2

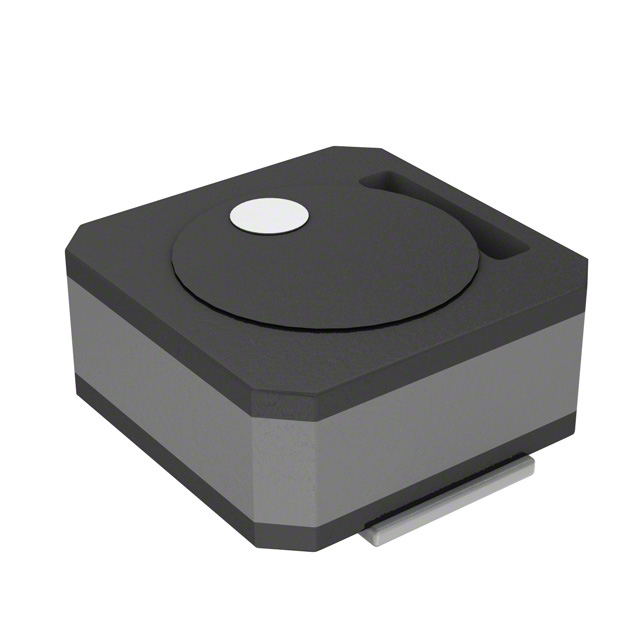

lmages are for reference only.VLCF4018T-100MR74-2
FIXED IND 10UH 740MA 188MOHM SMD
DatasheetNonstandard
48,677 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 740 mA 188mOhm Max Nonstandard
VLCF4018T-100MR74-2
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLCF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 740 mA |
| Current - Saturation (Isat) | 740mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 188mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VLCF4018T-150MR59-2 | VLCF4018T-1R6N1R7-2 | VLCF4018T-220MR49-2 | VLCF4018T-2R2N1R4-2 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15UH 590MA 268MOHM SMD | FIXED IND 1.6UH 1.72A 51MOHM SMD | FIXED IND 22UH 490MA 369MOHM SMD | FIXED IND 2.2UH 1.44A 60MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
