10BJ160CA

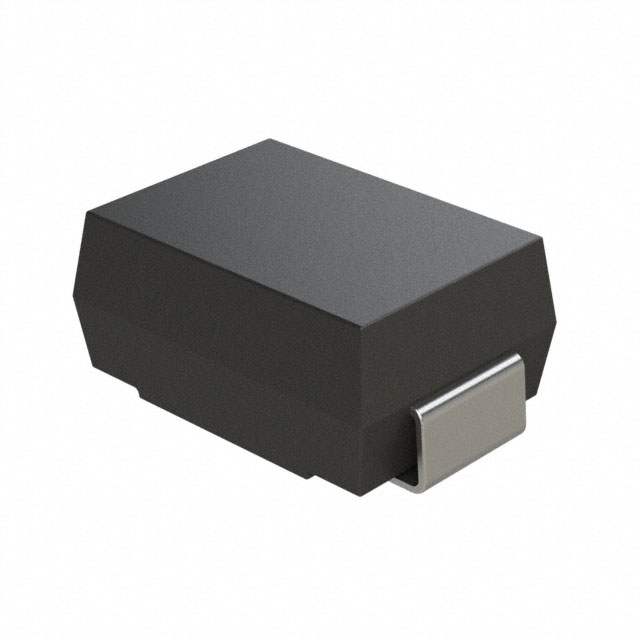

lmages are for reference only.10BJ160CA
TVS DIODE 160VWM 259VC SMB
DatasheetDO-214AA, SMB
34,254 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
259V Clamp 3.9A Ipp Tvs Diode Surface Mount SMB
10BJ160CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 10BJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 160V |
| Voltage - Breakdown (Min) | 178V |
| Voltage - Clamping (Max) @ Ipp | 259V |
| Current - Peak Pulse (10/1000µs) | 3.9A |
| Power - Peak Pulse | 1000W (1kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 10BJ160A | 10BJ16A | 10BJ16CA | 10BJ100A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 160VWM 259VC SMB | TVS DIODE 16VWM 26VC SMB | TVS DIODE 16VWM 26VC SMB | TVS DIODE 100VWM 162VC SMB |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
