10BJ190A

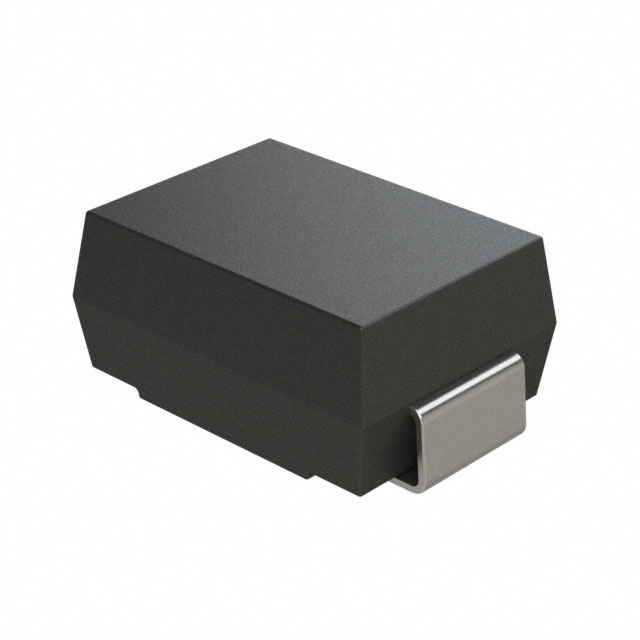

lmages are for reference only.10BJ190A
TVS DIODE 190VWM 307VC SMB
DatasheetDO-214AA, SMB
41,265 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
307V Clamp 3.3A Ipp Tvs Diode Surface Mount SMB
10BJ190A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 10BJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 190V |
| Voltage - Breakdown (Min) | 211V |
| Voltage - Clamping (Max) @ Ipp | 307V |
| Current - Peak Pulse (10/1000µs) | 3.3A |
| Power - Peak Pulse | 1000W (1kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 10BJ190CA | 10BJ100A | 10BJ100CA | 10BJ10A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 190VWM 307VC SMB | TVS DIODE 100VWM 162VC SMB | TVS DIODE 100VWM 162VC SMB | TVS DIODE 10VWM 17VC SMB |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
