2920L185DR
lmages are for reference only.2920L185DR
PTC RESET FUSE 33V 1.85A 2920
Datasheet2920 (7351 Metric), Concave
43,494 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 33V 1.85 A Ih Surface Mount 2920 (7351 Metric), Concave
2920L185DR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, 2920L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Hold (Ih) (Max) | 1.85 A |
| Current - Trip (It) | 3.7 A |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.289" L x 0.202" W (7.35mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 2.5 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 150 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

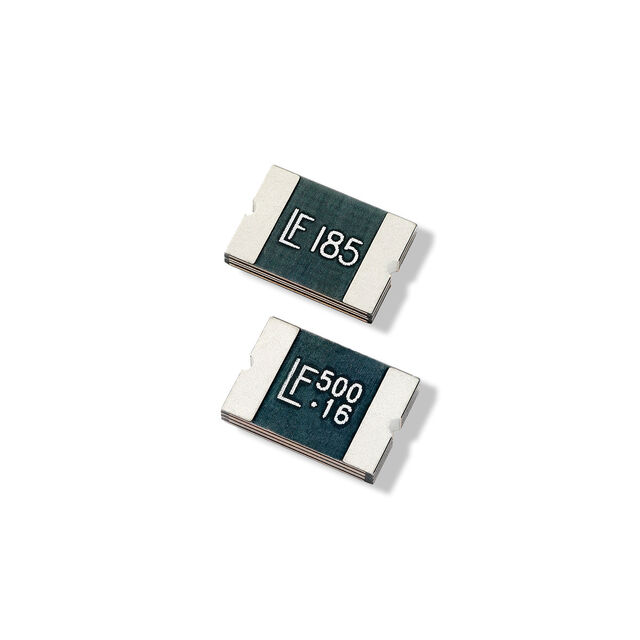

| Part Number | 2920L030DR | 2920L030DR-A | 2920L035DR | 2920L050/72DR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 60V 300MA 2920 | PTC RESET FUSE 60V 300MA 2920 | POLYSWITCH RESETTABLE PPTC | POLYSWITCH RESETTABLE PPTC |
| Series | POLY-FUSE®, 2920L | POLY-FUSE®, 2920L | POLY-FUSE®, 2920L | POLY-FUSE®, 2920L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
