SMAJE33CAH

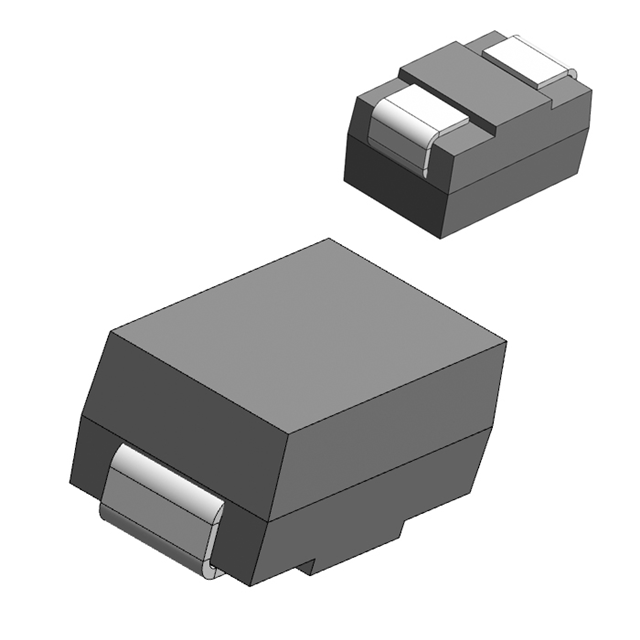

lmages are for reference only.SMAJE33CAH
TVS DIODE 33VWM 53.3VC BI
DatasheetDO-214AC, SMA
83,735 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
53.3V Clamp 7.5A Ipp Tvs Diode Surface Mount SMA
SMAJE33CAH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMAJExxH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse (10/1000µs) | 7.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMAJE33CA | SMAJE330CAH | SMAJE33A | SMAJE33AH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TVS DIODE 33VWM 53.3VC SMA | TVS DIODE 330VWM BI | TVS DIODE 33VWM 53.3VC SMA | TVS DIODE 33VWM 53.3VC UNI |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
