SMAJE7-0A

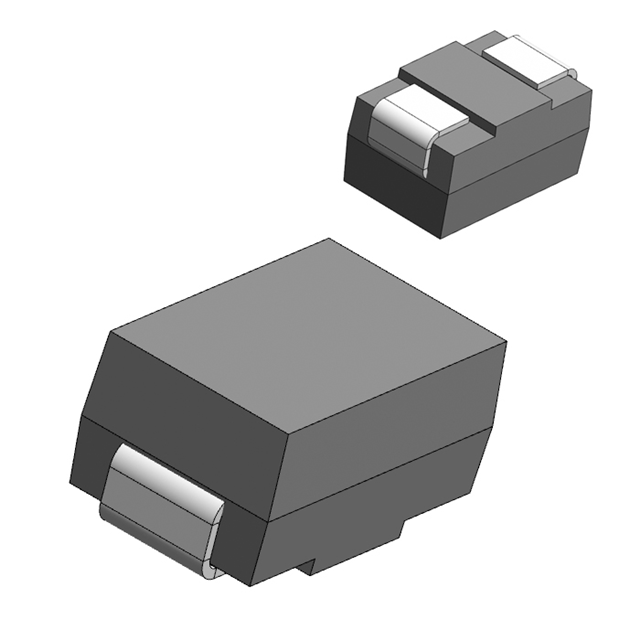

lmages are for reference only.SMAJE7-0A
TVS DIODE 70VWM 113VC SMA
DatasheetDO-214AC, SMA
54,363 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
113V Clamp 3.6A Ipp Tvs Diode Surface Mount SMA
SMAJE7-0A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMAJE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 70V |
| Voltage - Breakdown (Min) | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V |
| Current - Peak Pulse (10/1000µs) | 3.6A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | SMAJE7-0AH | SMAJE7-0CA | SMAJE7-0CAH | SMAJE7-5A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | TVS DIODE 7VWM UNI | TVS DIODE 7VWM 12VC SMA | TVS DIODE 7VWM BI | TVS DIODE 7.5VWM 12.9VC SMA |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
